Unveiling the Craftsmanship and Production Process of Paper Honeycomb Board: Features from Chinese Factory

The manufacturing process of paper honeycomb board

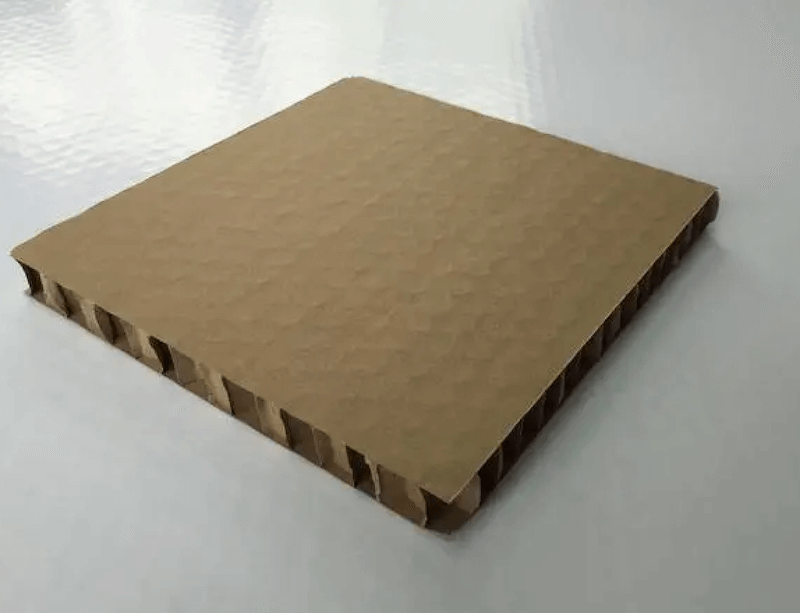

Paper honeycomb board, a lightweight and versatile material, is widely used in various industries for its structural strength and eco-friendly properties. This article will delve into the three different production techniques used to manufacture paper honeycomb board: the Wrapping Method, the Stacking Method, and the Direct Forming Method.

The Wrapping Method

The Wrapping Method involves creating the honeycomb paper core first, which is then cut into desired lengths. These cut pieces are glued together, and a face paper is pressed on top to form the honeycomb paper board. This method is also known as the “wrapping method.”The process starts by feeding two rolls of paper in the same direction, with adhesive applied to one roll’s surface. The two rolls are then bonded together and wound around an octagonal drum. As the drum wraps to a certain thickness, it undergoes vertical cutting to create eight faces. The cut paper core is then horizontally stretched to its final form. While the Wrapping Method boasts high efficiency, it generates around 18% waste material.

The Stacking Method

In the Stacking Method, the honeycomb paper core is created first, and then the board is made by stacking layers of paper sheets. Each paper sheet is horizontally glued with the sheet below it, creating a layered structure. Once the desired thickness is achieved, the paper is directly stretched to form the honeycomb paper board.Compared to the Wrapping Method, the Stacking Method is more time-consuming and less efficient but produces less waste material, making it a preferred choice for certain applications.

The Direct Forming Method

The Direct Forming Method involves the use of eight rolls of high corrugated paper and two rolls of cardboard paper. These materials are fed into an automated honeycomb board production line, where the mechanical process directly forms the honeycomb paper board.This method offers high efficiency and superior quality honeycomb boards. The boards do not require cold pressing or drying and can be shipped directly after production, making it a quick and efficient option.

he production of paper honeycomb board involves various methods, each with its unique advantages and disadvantages. The choice of technique depends on factors such as efficiency, waste generation, and the specific requirements of the end product.

Paper honeycomb board stands as a sustainable and innovative solution, finding applications in a wide range of industries due to its lightweight nature and structural strength. As technology advances, the manufacturing process continues to evolve, ensuring that paper honeycomb board remains a key player in modern materials and design.

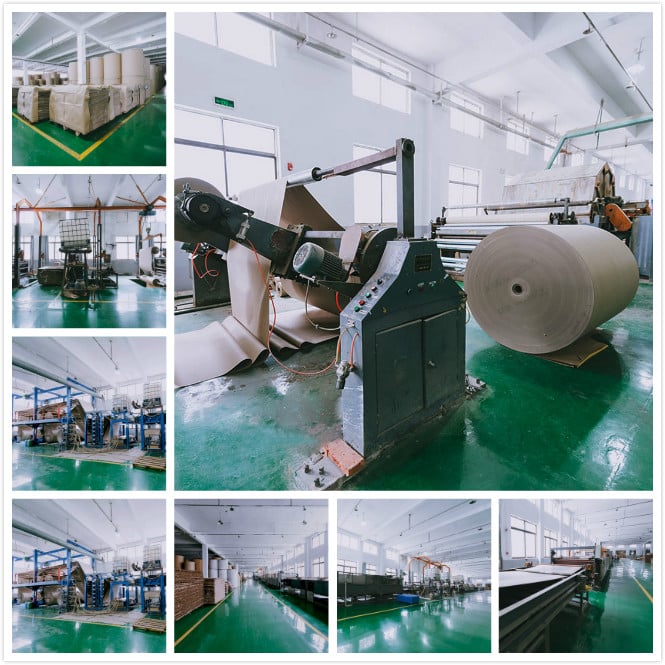

paper honeycomb core workline 1
paper honeycomb core workline

Internal structure offers several benefits

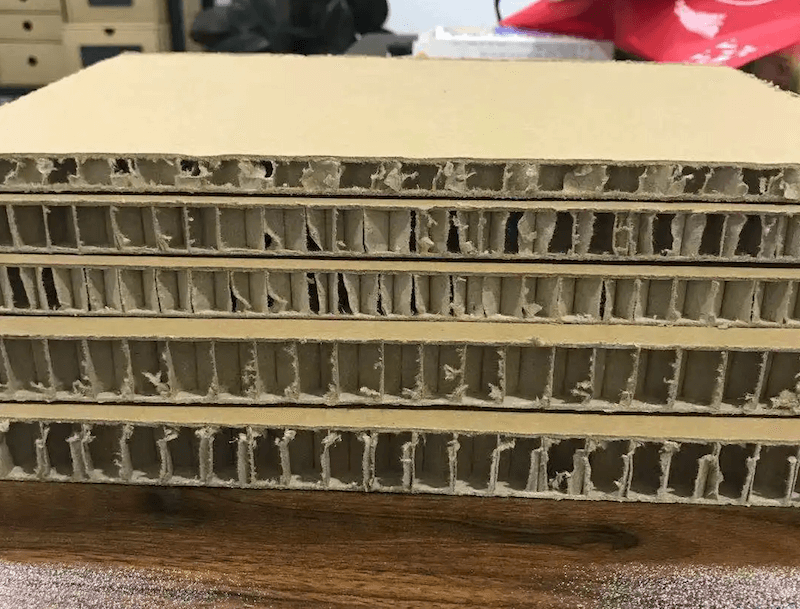

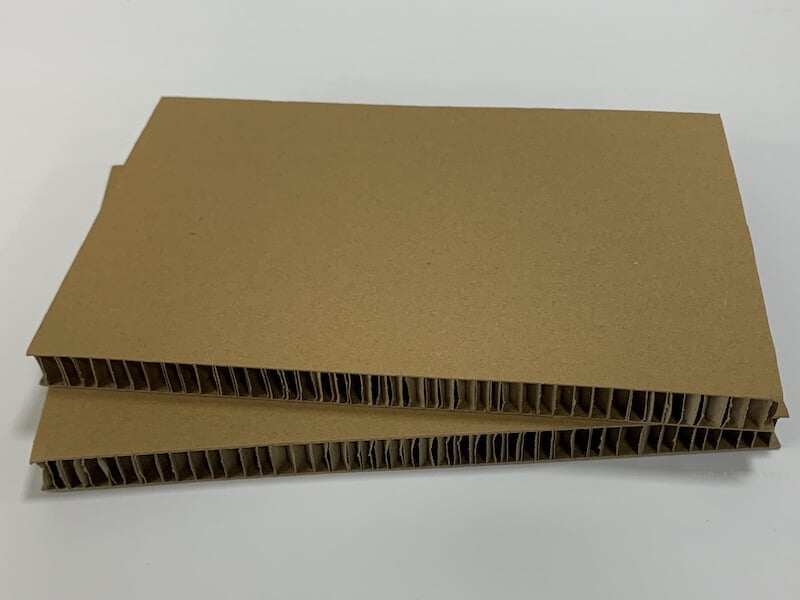

Paper honeycomb board has a unique internal structure, consisting of a series of hexagonal cells made from paper materials. These cells are arranged in a honeycomb-like pattern, providing the board with exceptional structural integrity and strength.

  1. Structural Strength: The honeycomb structure’s geometric pattern enhances its load-bearing capacity, making it strong and durable. It can withstand considerable compressive forces without deforming or collapsing.
  2. Minimal Deformation: The paper honeycomb board maintains its shape and structure even under significant pressure or impact. This inherent resilience reduces the risk of deformation and ensures dimensional stability.
  3. Excellent Cushioning: The air-filled cells within the honeycomb structure act as natural cushions, providing superior impact resistance. This makes paper honeycomb board an ideal choice for protective packaging and shock-absorbing applications.
  4. Sound Absorption: The interconnected air pockets in the honeycomb cells contribute to its sound-absorbing properties. It effectively reduces noise and vibration, making it suitable for applications where noise control is essential.
  5. Thermal Insulation: The air pockets within the honeycomb structure also act as insulators, providing thermal resistance. This feature helps in maintaining temperature levels and conserving energy, making it useful in building insulation and HVAC applications.
  6. Lightweight and Strong: Paper honeycomb is exceptionally lightweight, making it ideal for applications where weight reduction is crucial. Despite its lightweight nature, it exhibits impressive strength, providing structural integrity to the end product.
  7. Sustainable and Eco-Friendly: The use of paper as the primary raw material makes honeycomb an eco-friendly option. It is biodegradable and recyclable, reducing the environmental impact compared to other non-renewable materials.
  8. Excellent Insulation: The honeycomb structure with air-filled cells acts as a natural insulator, providing thermal and acoustic insulation properties. This feature makes it suitable for applications where temperature control and noise reduction are important.
  9. Cost-Effective: Paper honeycomb is relatively inexpensive compared to other structural materials, making it a cost-effective choice for various applications.
  10. Versatile Applications: Paper honeycomb finds applications in diverse industries, including packaging, furniture, automotive, construction, and more. Its versatility allows it to be customized for different needs.
  11. Efficient Resource Utilization: The manufacturing process of paper honeycomb uses less material compared to solid structures, resulting in efficient resource utilization and minimal waste generation.
  12. Easy to Shape: Paper honeycomb can be easily molded into various shapes, making it suitable for complex designs and customizable solutions.
