Commercial Grade aramid honeycomb core

commercial grade aramid fiber honeycomb is manufactured from Meta-Aramid paper and coated with a heat resistant phenolic resin.

Additional information

Weight 1 kg
Dimensions 1220 × 2440 × 0.4 cm
Density

29kg/m3, 40kg/m3, 48kg/m3, 64kg/m3, 80kg/m3, 96kg/m3, 128kg/m3

Cell size

3.2mm, 4mm, 4.8mm, 6.4mm, 8mm, 9.5mm

Standard size

1220*2440mm, 1300*2600mm, 1600*3200mm

Details about Commercial Grade aramid honeycomb core

Aramid  honeycomb core as a new product, it has been widely applied in various fields.our company’s products market nationwide and exported to all over the world.

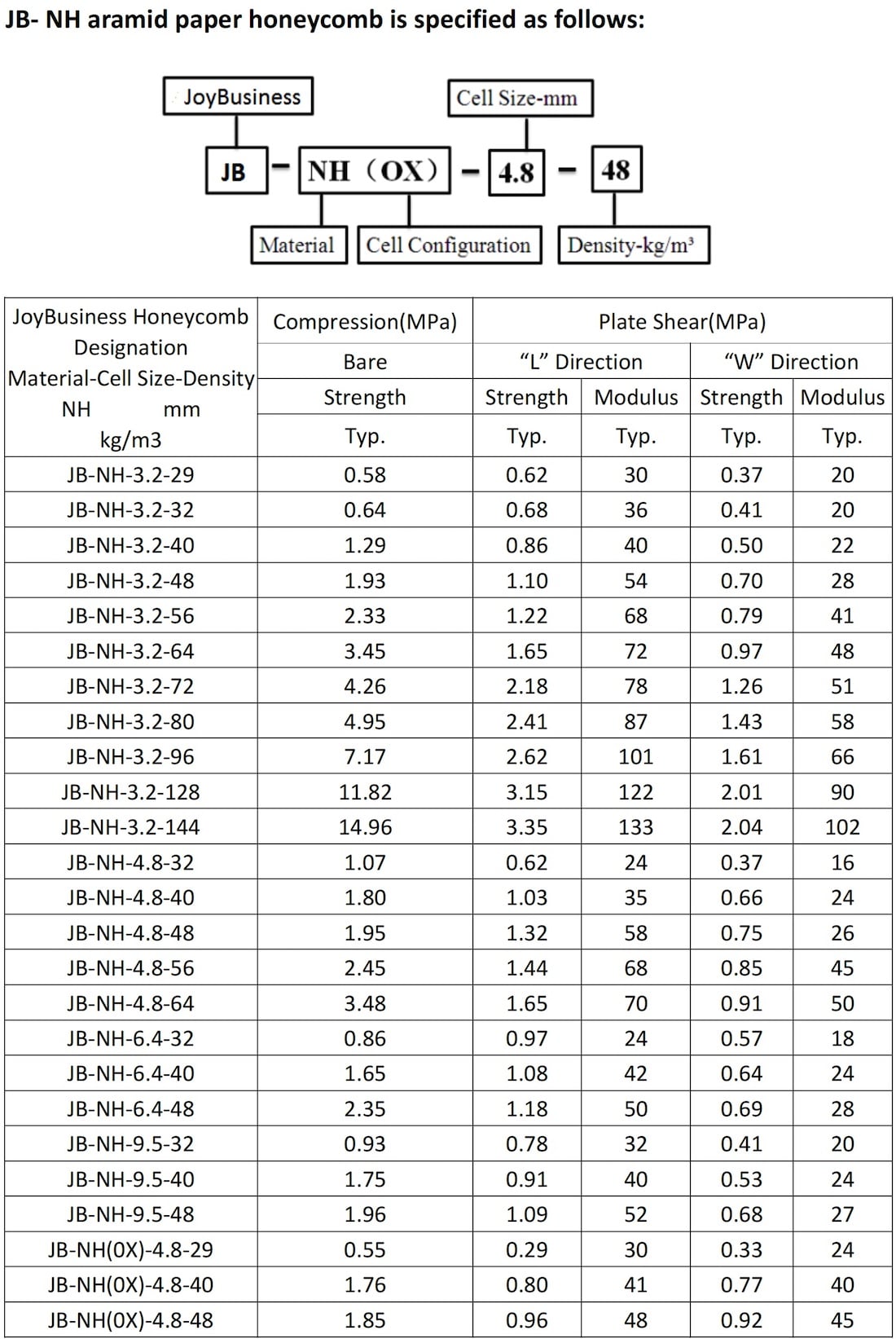

this sheet presents guarantee values of honeycomb obtained from testing specimens of 12.7mm thickness .all data are represendtative at the nominal product density.Data is based on results gained from exprerience and tests and is believed to be accureate yet without acceptance of liability for loss or damage in curred and attributable to reliance thereon as conditions of use lie outside our control.



Applications:
aramid fiber honeycomb uses include boat hulls, auto racing bodies, train car panels, ship panels, ground transportation structures, military shelters, ground antennas and special purpose panels.



Aramid fiber honeycomb is available in sheets, blocks or cut to size pieces in both regular hexagonal and over expanded (OV) cell configurations.
